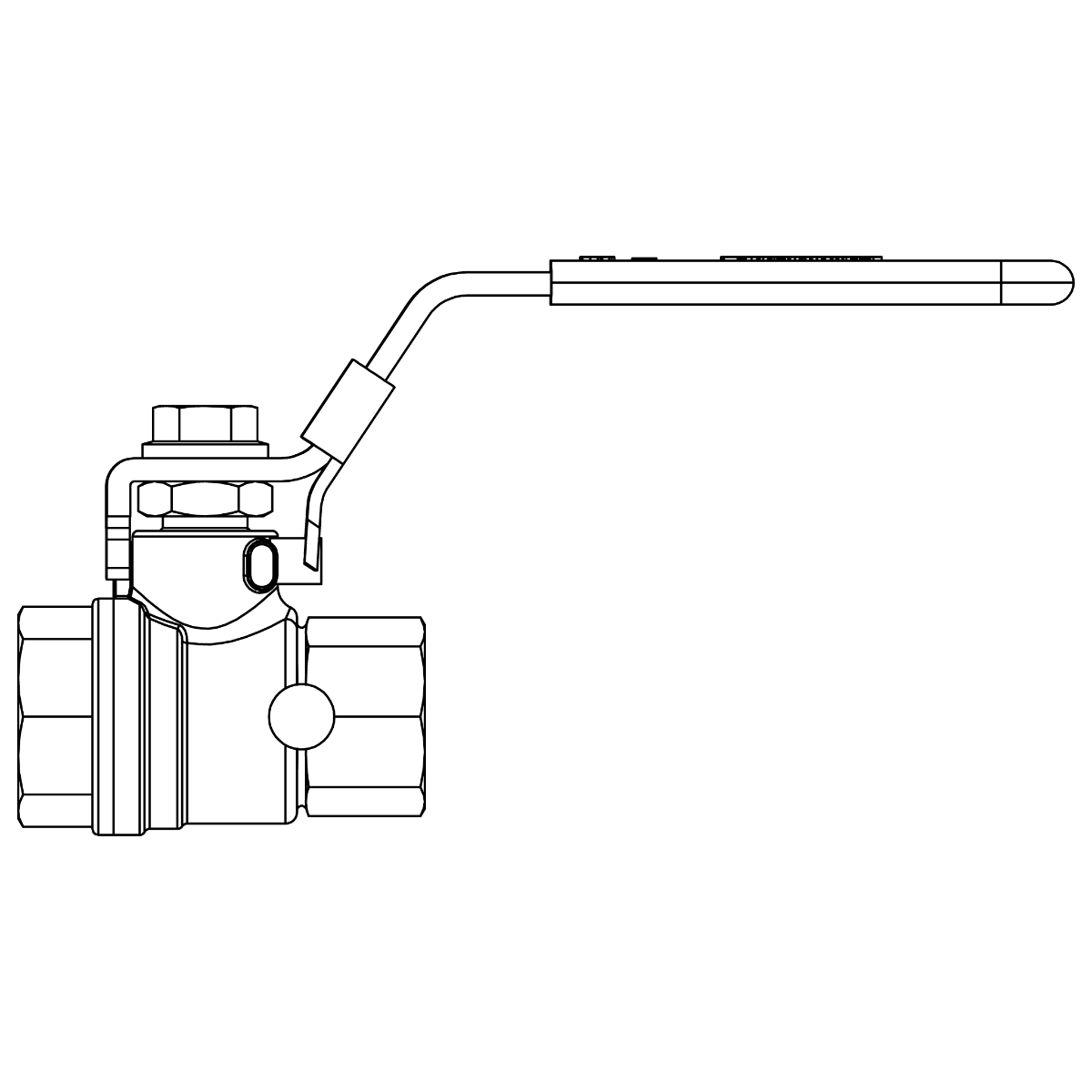

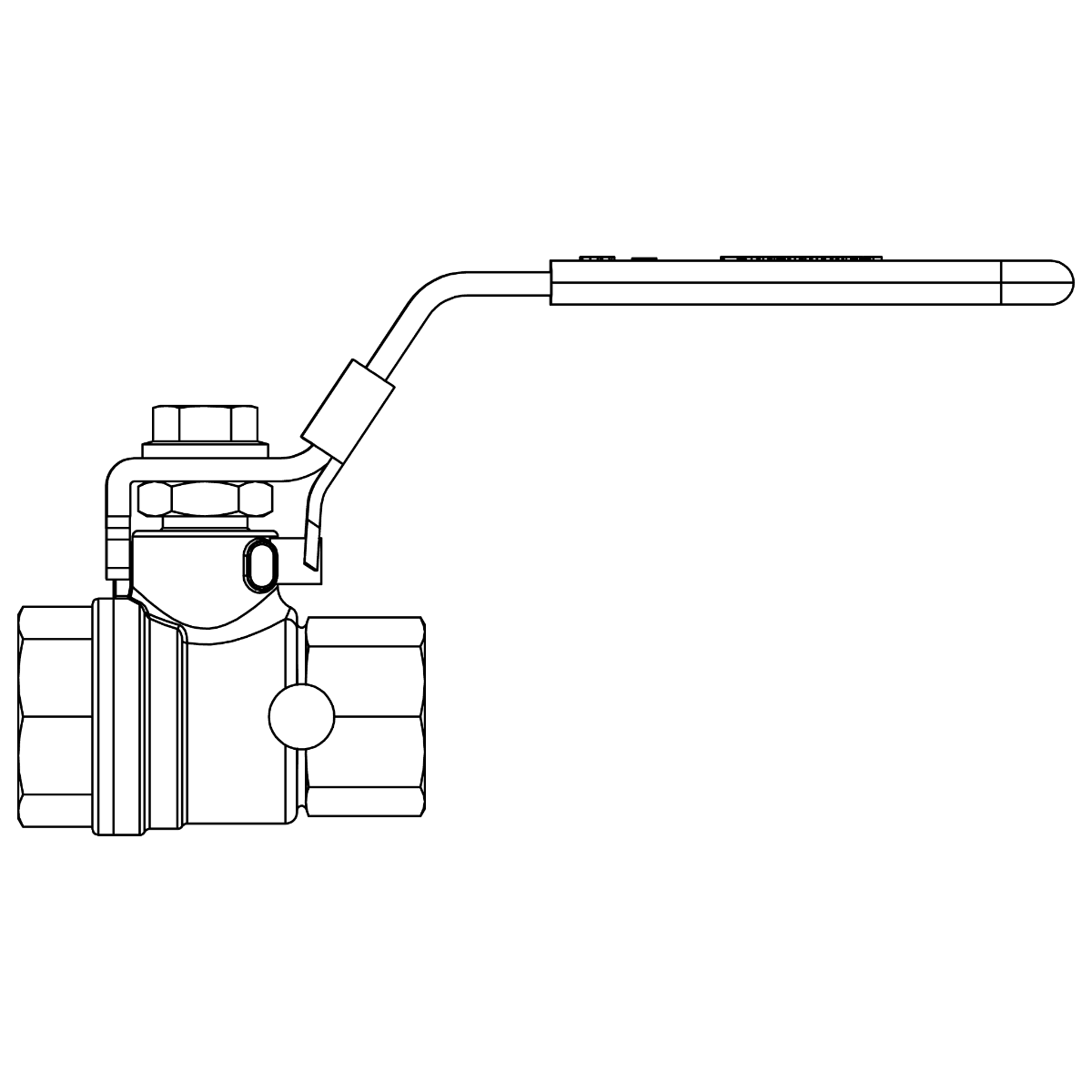

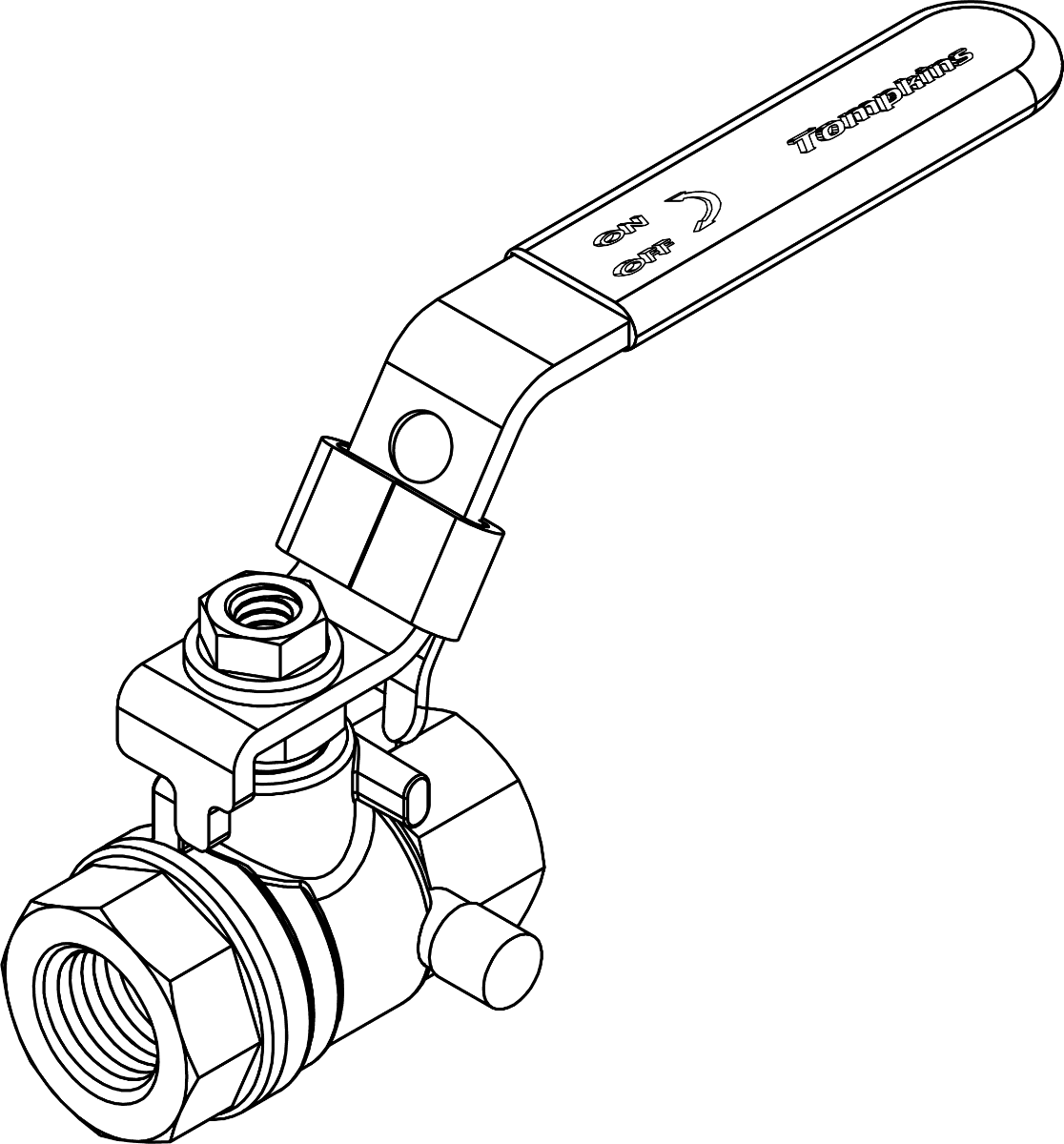

Venting-Locking Ball Valve
Venting-Locking Ball Valve

FBV-VL

Venting-Locking Ball Valve

PART NUMBER: FBV-VL

Thread 1 Nominal Size

Thread 2 Nominal Size

  • FP x FP, Two-piece Body, Full Port, Blowout-proof Stem, Adjustable Packing Nut, PTFE Seats
  • Pressure Rating: 600 psi WOG
  • NSF/ANSI 61 Approved
  • Drain Port Allows Draining of the Non-pressure Side of the Valve When Closed
  • Size: 1/2″ to 1″
  • 1/2" - 1"
  • For Use with Wide Range of Liquids and Gases
  • Threaded - Two-Piece Body - Full Port - Blow-out Proof Stem - Adjustable Packing Nut - PTFE Seats
  • NSF/ANSI 61 Approved
  • Drain Port Allows Draining of the Non-pressure Side of the Valve When Closed
  • NPTF Threads
  • 1/4 Turn Vinyl Insulated Locking Lever Chrome Plated Steel

Handle Type:1/4 Turn Vinyl Insulated Locking Lever Chrome Plated Steel
Material:Brass
Operating Temperature Range:-4° F to 194° F
Pressure Rating:600 PSI Non-Shock / 150 WSP Saturated Steam
Shape:Straight
Thread 1 Type:Female Pipe
