SKU
FBV-VL

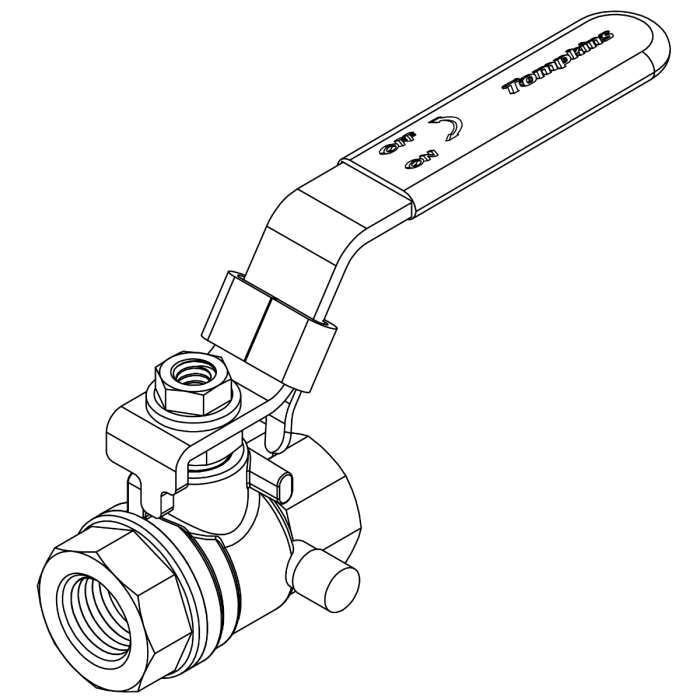

Venting-Locking Ball Valve

Part Number:
FBV-VL
Description:
  • FP x FP, Two-piece Body, Full Port, Blowout-proof Stem, Adjustable Packing Nut, PTFE Seats
  • Pressure Rating: 600 psi WOG
  • NSF/ANSI 61 Approved
  • Drain Port Allows Draining of the Non-pressure Side of the Valve When Closed
  • Size: 1/2″ to 1″
  • 1/2" - 1"
  • For Use with Wide Range of Liquids and Gases
  • Threaded - Two-Piece Body - Full Port - Blow-out Proof Stem - Adjustable Packing Nut - PTFE Seats
  • NSF/ANSI 61 Approved
  • Drain Port Allows Draining of the Non-pressure Side of the Valve When Closed
  • NPTF Threads

Edit Product Attributes:

Current Inventory

Login to see current inventory.

More Information

Attributes:
Material: Brass
Shape: Straight
Thread 1 Type: Female Pipe
Pressure Rating: 600 PSI Non-Shock / 150 WSP Saturated Steam
Operating Temperature Range: -4° F to 194° F
Style: Full-Port
Handle Type: 1/4 Turn Vinyl Insulated Chrome Plated Steel
