Test Points

SKU
MBH TP-FP

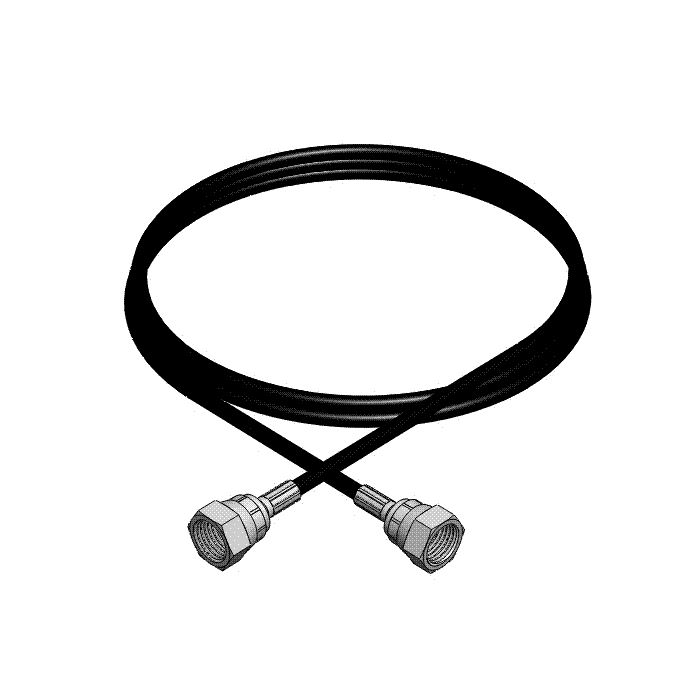

Microbore Hose Assembly - Test Point to Pipe

Part Number:
MBH TP-FP
Description:

Custom hose assemblies are available; please call us with your requirements at 800-255-1008.

Attributes:
Material: Steel
Thread 1 Type: Female Test Point
Thread 1 Nominal Size: M16X2.0
Thread 2 Type: Female Pipe
Thread 2 Nominal Size: 04
Thread 2: 1/4-18
Hose I.D. (inch): 0.078
Hose I.D. (mm): 2.0
Hose O.D. (inch): 0.197
Hose O.D. (mm): 5.0
Working Pressure (PSI): 9100
Working Pressure (BAR): 630
Minimum Burst Pressure (PSI): 27300
Minimum Burst Pressure (BAR): 1890
Minimum Bend Radius (inch): 0.80
Minimum Bend Radius (mm): 20
