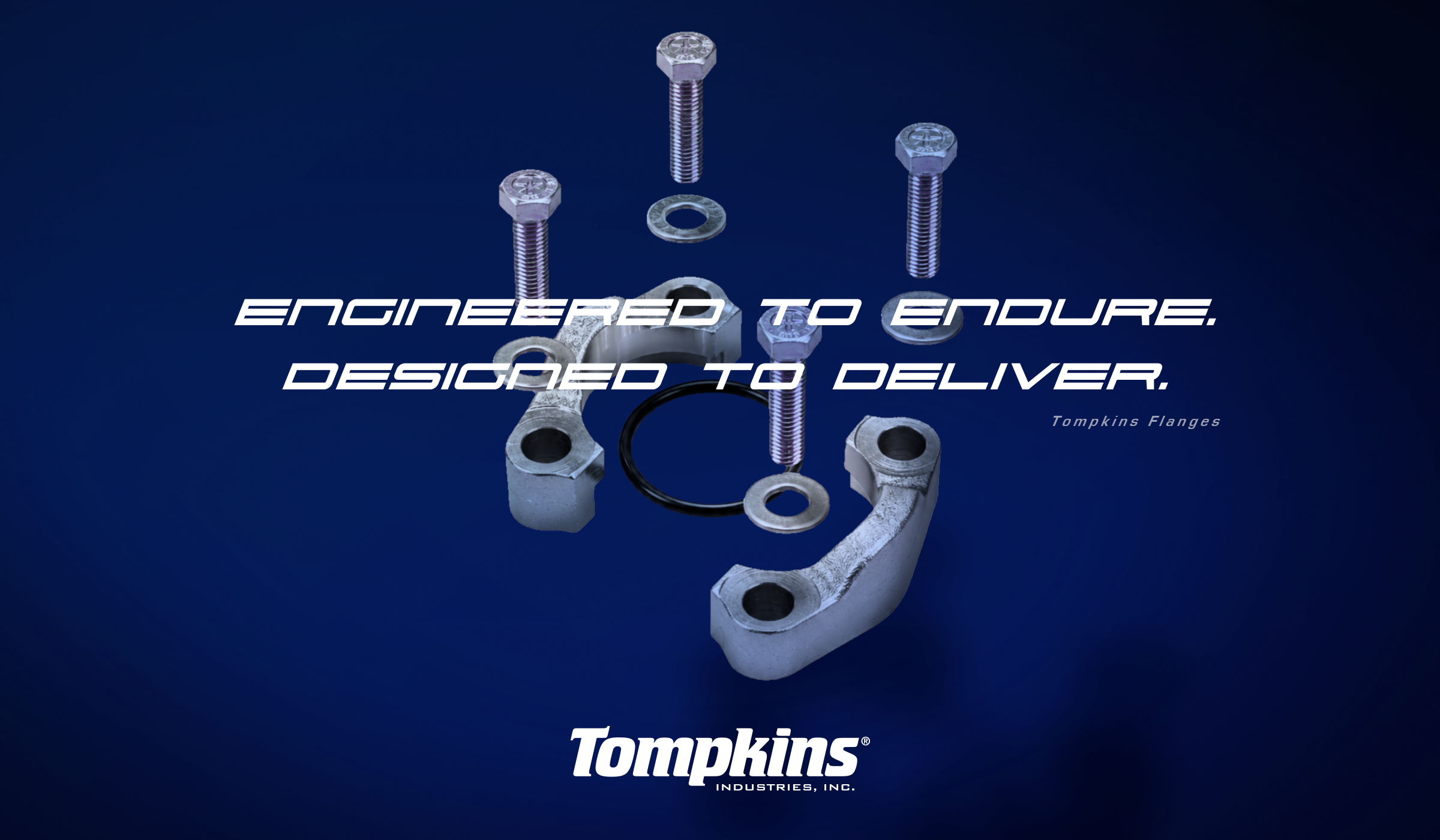

Tompkins Industries — Flanges & Flange Adapters
Sealed Under
Pressure.
SAE Code 61 and Code 62 flange components, plus JIC and ORFS flange adapters — engineered to make and hold the seal in high-pressure hydraulic systems.
Request a Quote
Why Tompkins Flanges
Engineered to the SAE J518 standard for the pressures your equipment actually sees — with the adapter families, assembly options, and construction methods your line already specs.
SAE Code 61 & Code 62
Industry-standard flange components sized to the pressures your equipment sees — Code 61 up to 5,000 PSI (varies by size), Code 62 at 6,000 PSI, all per SAE J518.
SAE JIC & ORFS Adapters
37° JIC (SAE J514) and O-Ring Face Seal flange adapters built to industry-standard patterns — mate cleanly with the SAE connections you already spec.
Compact Forged Adapters
Forged construction packs the same connection into a smaller envelope — specify forged when clearance is tight and standard adapters won't fit the space.
TomCAT Adapter Line
Tompkins' TomCAT flange adapter series — compact, standardized flange-to-fitting parts that drop in without redesigning the manifold.
Distributor-Ready Inventory
Stocked across the flange line — SAE Code 61, Code 62, JIC, ORFS, and compact forged — ready for fast quote and fast ship.
Specs & Applications
Stocked configurations across the flange line and the systems where they earn their keep — wherever hydraulic pressure has to be sealed and held.
General Specifications
| Specification | Detail |
|---|---|
| Product Families | Code 61 & Code 62 Components; JIC & ORFS Adapters; TomCAT Adapters |
| Standard | SAE J518 (Code 61 & Code 62) |
| End Connections | 37° JIC, O-Ring Face Seal (ORFS) |
| Construction | Forged (compact envelope) |
| Pressure Ratings | Code 61: 500–5,000 PSI (varies by size) · Code 62: 6,000 PSI (flange side; JIC/ORFS end may be lower) |
| Configurations | Straights, elbows, split-flange kits, flange pads |
| Detailed Specs | Data sheets & pricing in the Resources login |
| Custom Options | Other sizes & configurations on request |
* Specifications vary by SKU and series. Contact us for full data sheets, dimensional drawings, and CAD downloads.
Common Applications
- Hydraulic power units and manifold assemblies
- Heavy equipment and off-highway machinery
- Construction and material-handling systems
- Oil, gas, and process equipment lines
- Marine and offshore hydraulic service
- Agricultural, forestry, and mining equipment
- Industrial fluid power installations
- Mobile equipment turret and articulating-joint plumbing
Get a Quote
Request a Quote
We typically respond within one business day.
